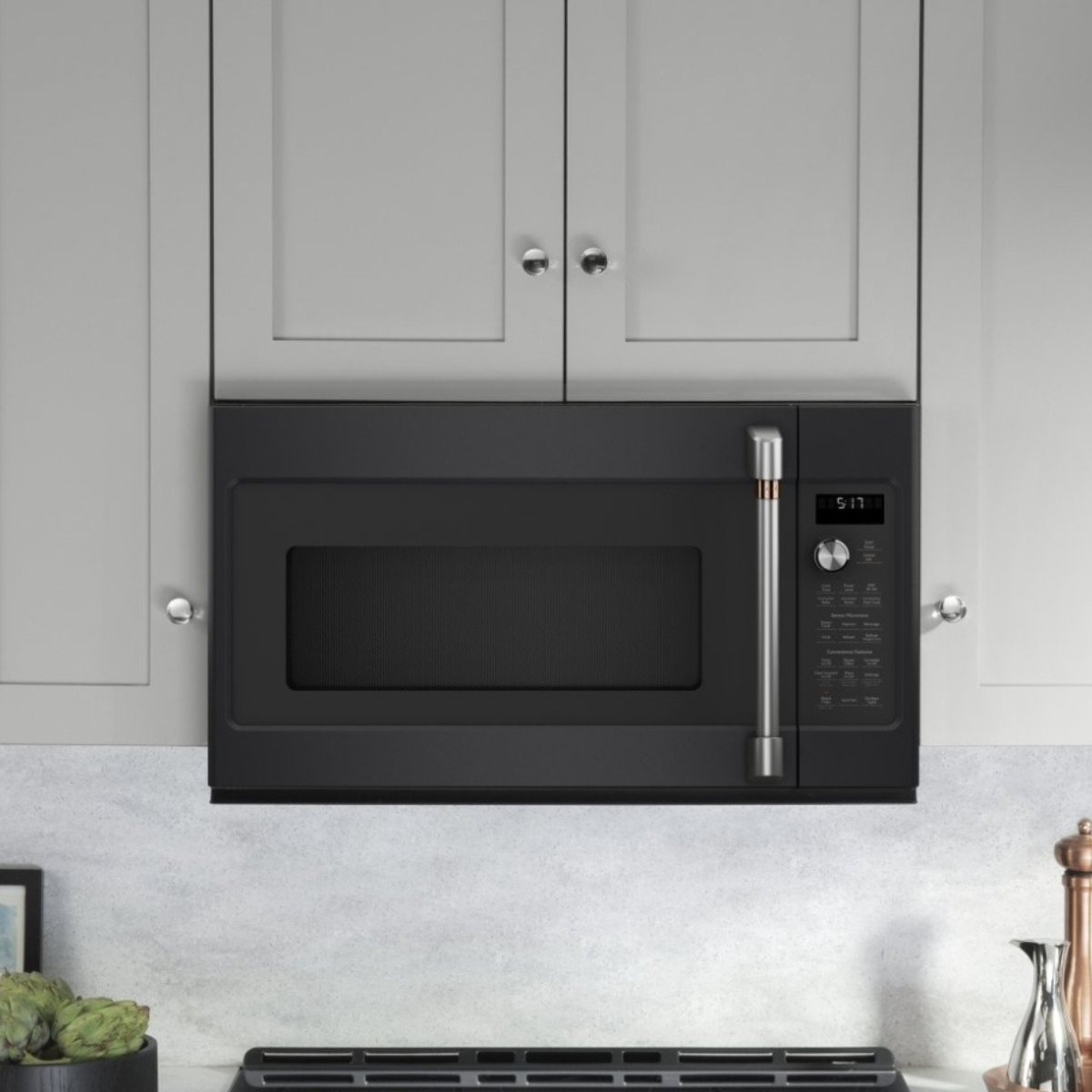

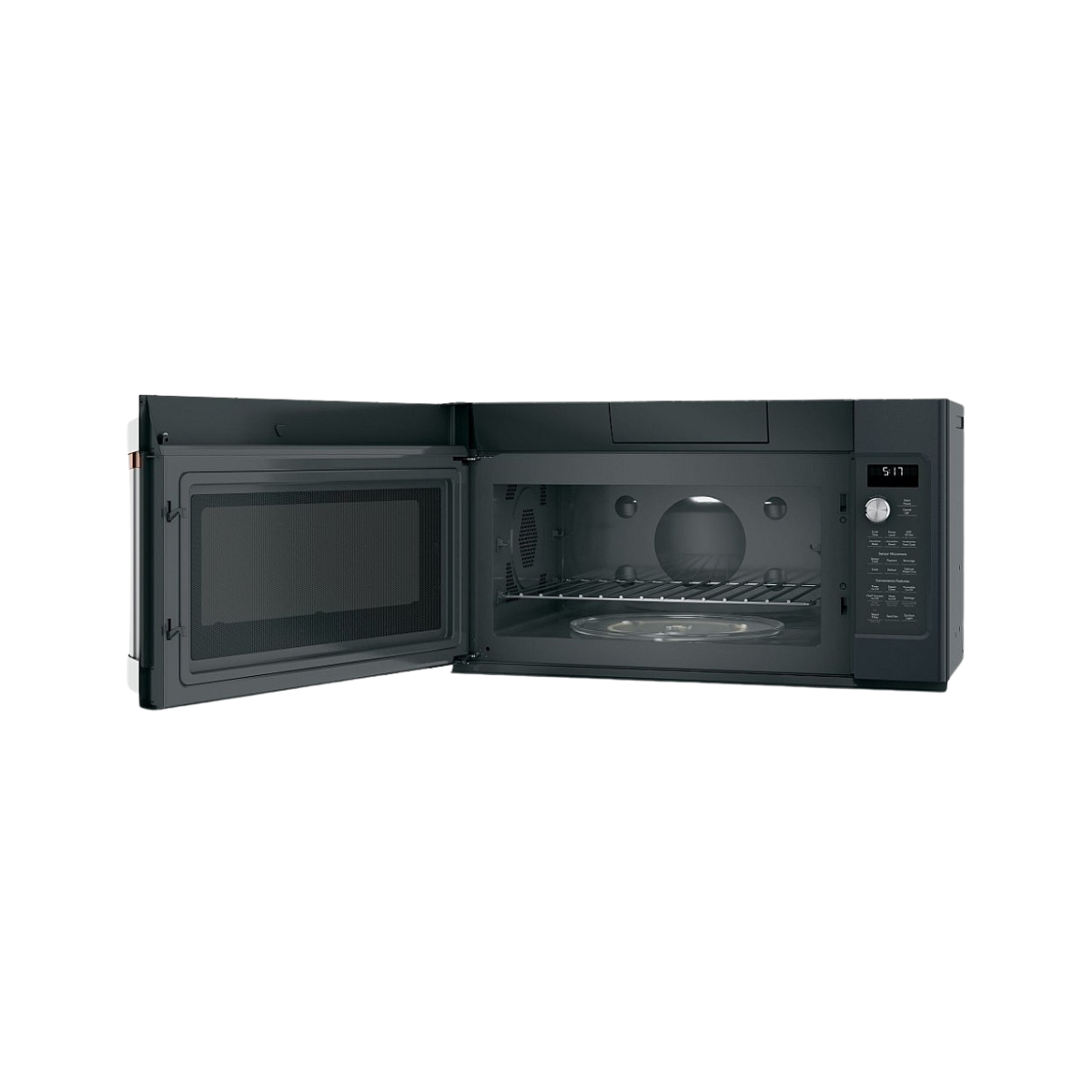

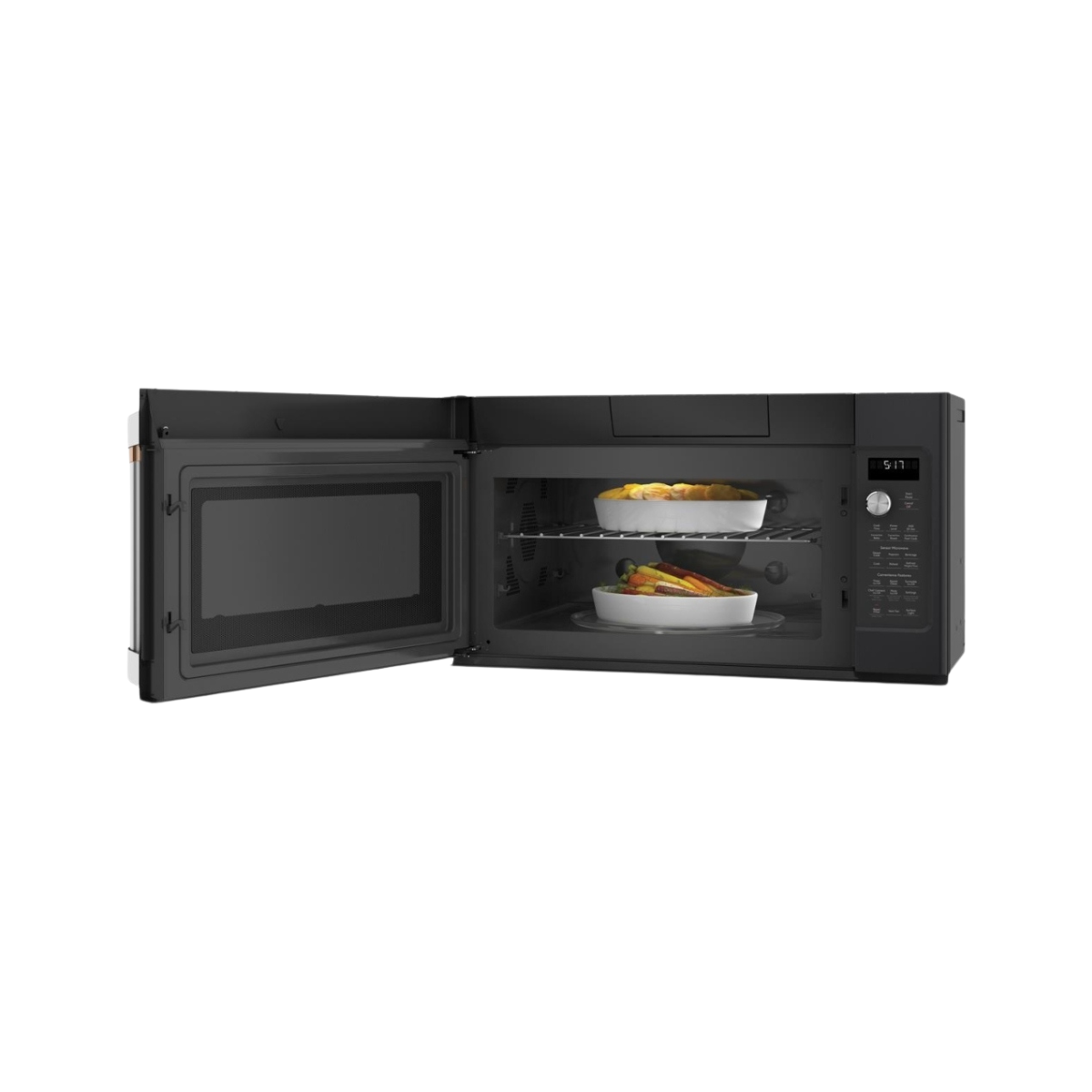

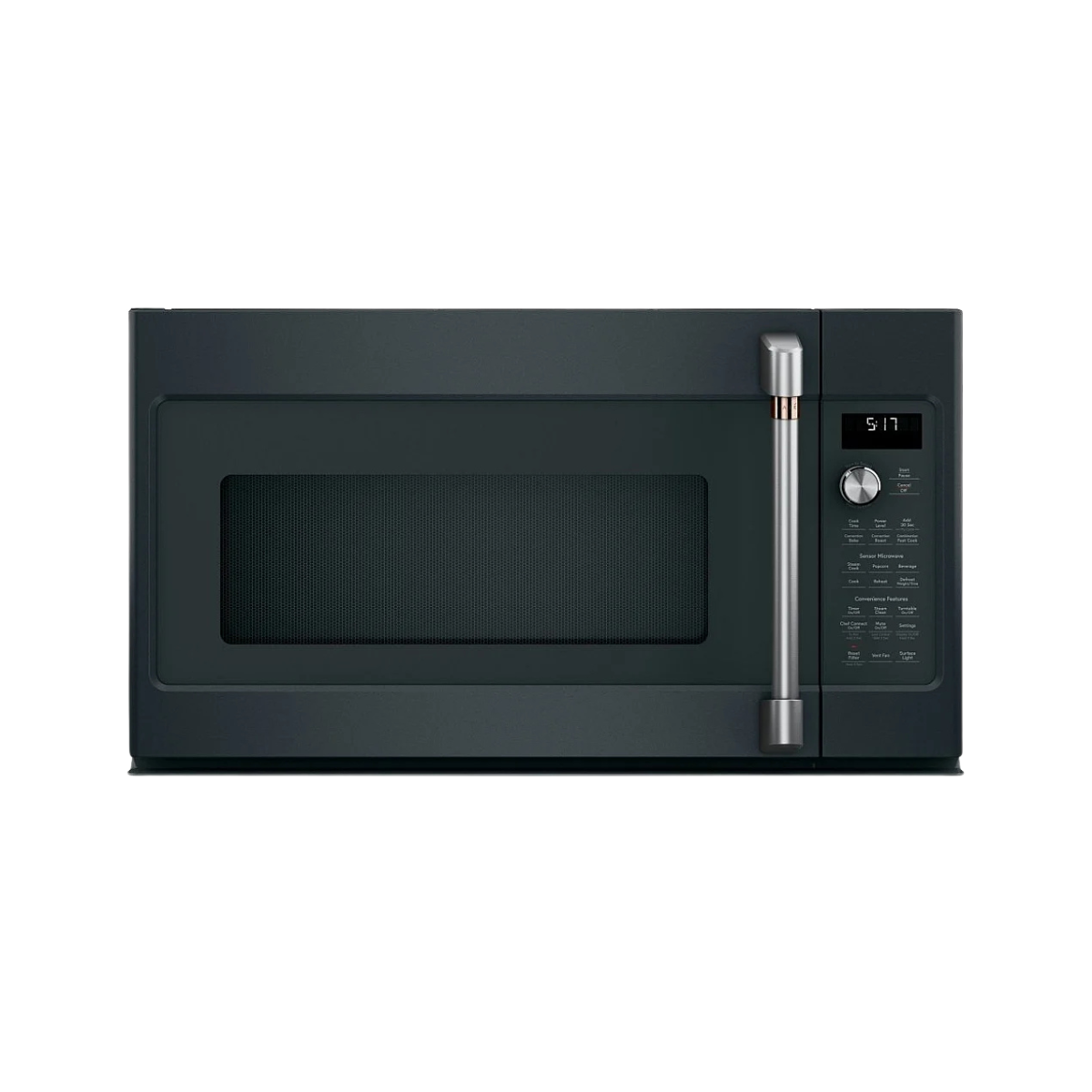

Cafe Black 30" Over the Range Microwave (1.7 cu. ft.) CVM517P3MD1

Capacity: Total: 1.7 cu. ft.

Finish & Appearance

• Color: Matte Black with Graphite Gray case
• Handle: Brushed Stainless
• Door Color: Black Stainless
• Style: Over-the-Range

Performance & Features

• Cooking Technology: Microwave with Convection
• Cooking Modes: Microwave, Convection Bake, Fast Cook, Roast
• Power Output: 950 Watts (IEC-705)
• Power Levels: 10
• Sensor Cooking Controls: Beverage, Cook (5 Foods), Defrost (Weight/Time), Popcorn, Reheat, Steam Cook

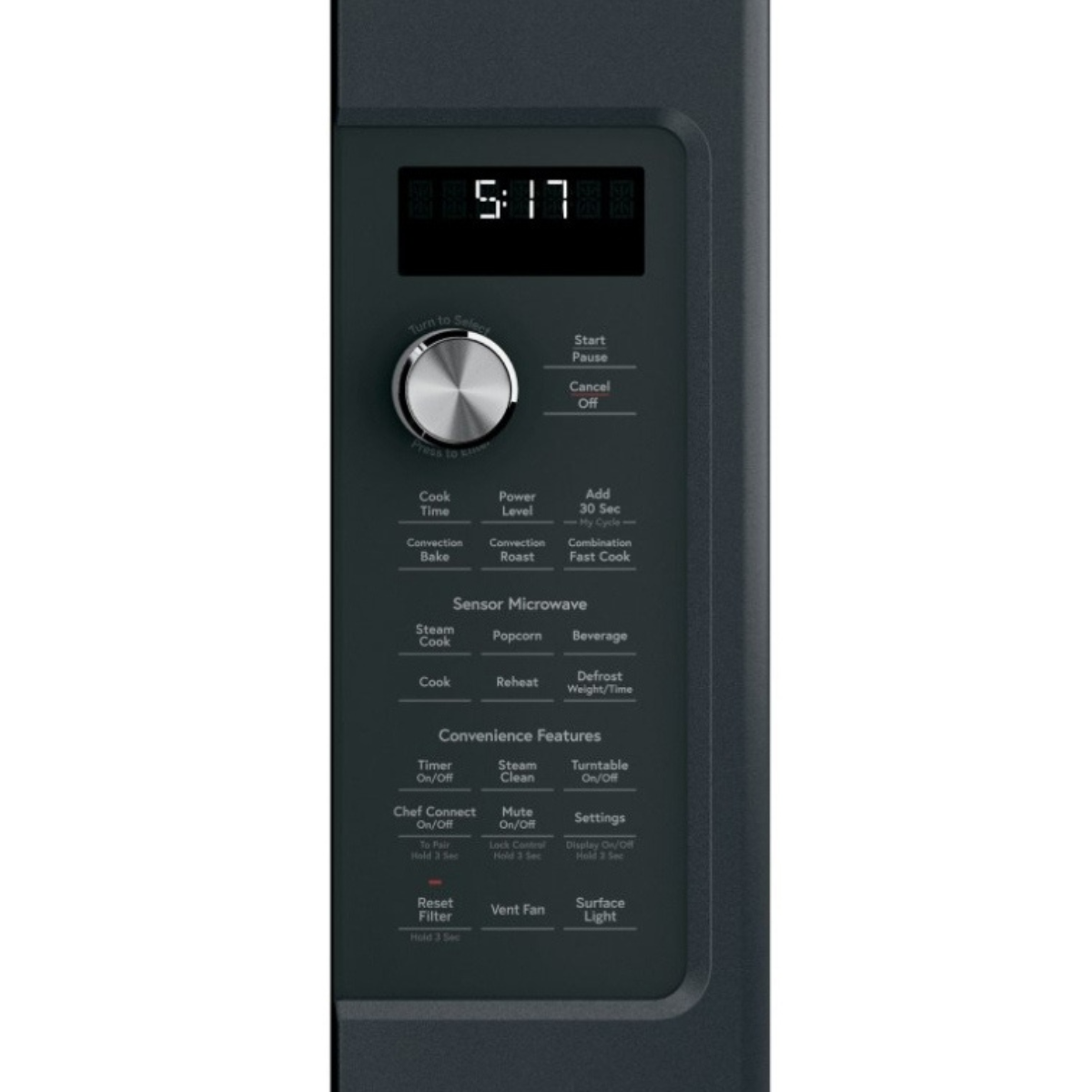

• Control Features: Add 30 Seconds, Chef Connect, My Cycle, Power Level, Steam Clean, Timer, Turntable On/Off, Vent Fan, Surface Light
• Display: LED digital clock with 3.13" diagonal screen
• Rack Type: 1 Round Rack, 1 Square Rack (2 fixed positions)
• Interior: Stainless Steel
• Interior Lighting: Halogen
• Cooktop Lighting: LED, High/Low/Off
• Vent Fan: 3-speed, 300 CFM
• Turntable: 13.6" glass, on/off option
• Venting Type: External
• Filter Kit: Recirculating Charcoal Filter Kit (included)

Electrical / Power

• Input: 120V, 60Hz
• Electrical Input Power: 1700W


Dimensions & Weight

• Overall (HxWxD): 16.31" x 29.88" x 17.94"
• Cavity (WxHxD): 21.63" x 9.75" x 14.13"
• Cabinet Width: 30"
• Net Weight: 85 lbs


Accessories

Optional Kits:

• 15" Bump Out Kit (JX15BUMPBB)
• Side Filler Panel Kit (JX36BDS)


  Handle Kit Finishes: Brushed Black, Bronze, Brass, Copper, Flat Black, Stainless



Certifications & Warranty

• Vent CFM: 300
• Exhaust Capacity: 300 ft³/min


Warranty:

• 1-Year Limited (Parts & Labour)
• 5-Year Limited (Magnetron Tube)

• Chef Connect – Syncs vents, lighting, and clocks between your microwave and range for a coordinated cooking experience.
• Steam Cook Button – Simplifies cooking rice and vegetables with perfectly timed steam settings.
• Sensor Cooking Controls – Automatically adjusts time and power for consistently delicious results.
• Fast Cook Setting – Combines convection and microwave technology for oven-quality meals in minutes.
• Convection Cooking – Circulates hot air around food for even browning and crisp finishes.
• LED Cooktop Lighting – Provides bright, energy-efficient illumination over your range.
• Steam Clean Interior – Stainless steel interior allows quick, easy cleaning of spills and splatters.
• 300-CFM Venting System – Three-speed fan effectively removes smoke, grease, and odors.
• Full-Width Removable Rack – Supports multi-level cooking for large or multiple dishes.
• My Cycle Setting – One-touch custom cooking that remembers your preferred time and temperature.
• 1.7 cu. ft. Capacity – Spacious interior accommodates larger dishes and cookware.
• Customizable Design Options – Choose from premium finishes and handle kits to match your kitchen style.
